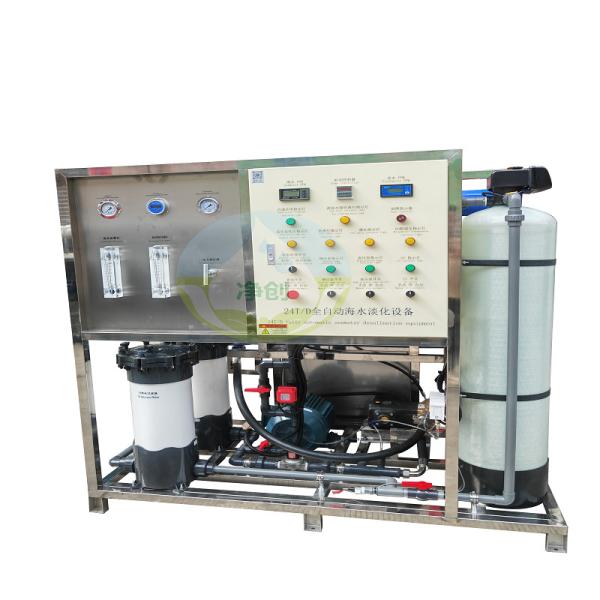

Double-Stage Dechlorination Water Desalination Equipment
Drinking water is the source of life, at present the world's
population of 2 billion people face a lack of fresh water
resources, which water scarcity is concentrated in some island
countries, saline and alkaline areas, including ocean-going ships,
offshore drilling platforms, etc., desalination units focus on
solving the problem of drinking water on ships, islands, drilling
platforms, saline and alkaline areas, etc., desalination of
seawater to solve the problem of drinking water.
Product Parameters of Nettronics Desalination System:
Product Model: JC-24T/D
Water quality: Comply with drinking water quality standard
GB5749-2022
Water production :250 litres/hour
Power :6KW
Desalination rate :>99.5%
Power supply: AC220V-380V / 50Hz / three-phase 440V/60HZ
Salinity of produced water: <700mg/L
Protection grade of electric control :IP54
System recovery rate :25% (depending on temperature and water
quality)
Dimension: 1600*900*1750 (L*W*H)
Operating pressure :<6.5Mpa
Net weight: 550Kg
Reverse osmosis membrane: RO membrane shell
Material composition :SUS316 stainless steel
System function
1. high pressure unloading, when the high pressure pump water
pressure exceeds 6.2MPa, the equipment automatically shutdown
protection action and sound and light alarm.
2. low-pressure shutdown protection, when the pretreatment water
supply is insufficient to cause the high-pressure pump inlet
pressure is less than 0.05MPa, it will automatically shut down to
protect the action and issue sound and light alarms.
3. configured with a manual multi-way valve, multi-media filter
cleaning when the differential pressure reaches 0.1MPa. 4.
4. reverse osmosis membrane cleaning system can be configured to
physically clean, chemically clean and refill the reverse osmosis
membrane components with protective fluid.
Main accessories Inlet pump: SUS316
Multi-media filter: Ø300x1400mm, FRP
Security filter: 20’ 5x 10μm, UPVC
Precision filter: 20’ 5x 5μm, UPVC
High pressure pump: Italy imported AR brand / South pump (CNP)
Reverse osmosis membrane: LG / U.S. Dow / Toray / Hydrogen seawater
membrane
Membrane shell: Chengda sea (FirstLine) FRP material
Cleaning tank: 50L, PE
Chemical cleaning device: system supporting
Electrical components: Schneider brand
Conductivity meter: Kreda brand
Factory equipment list
1. water treatment equipment
2. product operating instructions, use of video* operation
3. Completion information (product certification, factory test
report, packaging list)
4. Other consumables accessories
* 1. water production refers to the water temperature of 25 ℃, salt
content of 35000mg / L, operating pressure of 5Mpa under the
conditions of water production.
2. The equipment can be customised according to customers'
requirements.
