Frp Filter Tank Pretreatment Activated Carbon Quartz Sand Manganese Sand Tank Resin Softening Tank Multi-Media Filter

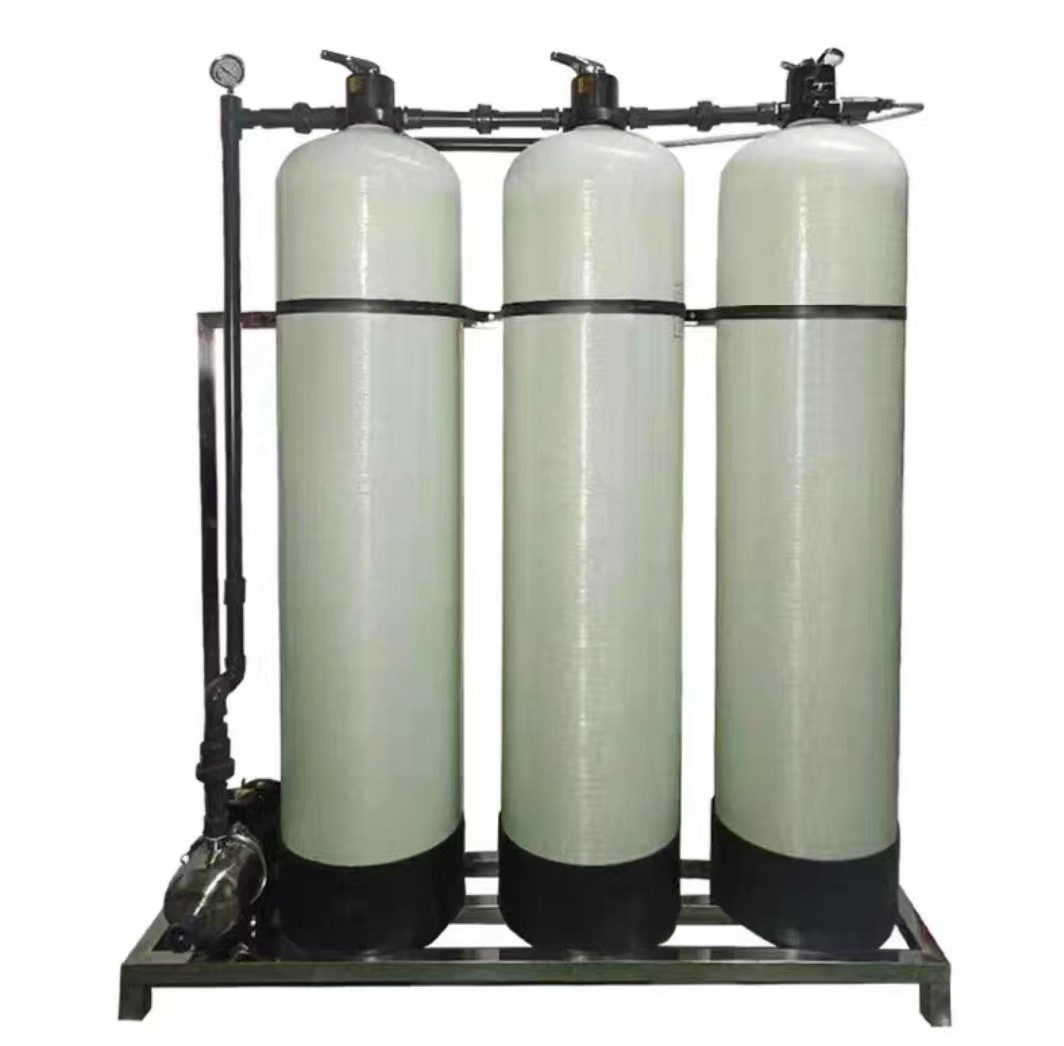

This diagram shows a set of water treatment filter tanks, which are usually used in the pre-treatment and purification process of water. These tanks can contain different filter media to remove impurities and contaminants from the water. Here are some common filter media and their uses:
1. Activated carbon: used to absorb organic matter, chlorine, odor and color in water, improving the purity and taste of water.
2. Quartz sand: used as part of a multi-media filter to remove suspended solids and particulate matter from water.
3. Manganese sand: mainly used to remove iron and manganese from water, which may affect the taste and color of water.
4. Resin softening tank: used to soften water by removing hardness ions (such as calcium and magnesium) from water through an ion exchange process.
5. Multi-media filter: usually contains filter media of different particle sizes, such as sand, gravel and activated carbon, to remove various contaminants from water. These filter tanks can be used alone or in combination to achieve more efficient water treatment effects. For example, a multi-media filter can be used as a pre-treatment step to remove large particles, and then the water can be further purified through an activated carbon tank, and finally softened by a resin softening tank. The configuration and use of these filters in a water treatment system depends on the quality of the source water and the desired treatment goals. The correct configuration can ensure that the water quality meets specific standards and is suitable for domestic water, industrial water or specific water treatment needs. If you have specific questions about these filters, such as installation, maintenance or performance parameters, we can provide more information, please communicate with us

Introduction:
Today, as water resources are increasingly scarce, [Dongguan Jingchuang Environmental Protection Equipment Co., Ltd.] is committed to turning the vast ocean into a source of life and providing clean and safe drinking water to the world.

Seawater desalination equipment Ship island filtration drinking water water purifier subsea water filtration system

Commercial Seawater RO membrane filtration water treatment Plant is used to remove salt and purify water. This system consists of booster pump, FRP/Carbon Steel pretreatment tanks (sand filter, activated carbon filter), cartridge filter housing, chemical dosing systems, high pressure pump, FRP membrane pressure vessel, 2540 or 4040 membranes, control panel and touch screen control.
Material and parts brand can be changes as regards to raw water quality and customer demand.

Note: Due to product specificity need to buy the pro please contact our customer service, customer service will be based on the pro's water consumption and water quality problems to recommend the right products to the pro, in order to avoid unnecessary future trouble please do not blindly buy equipment, such as the need for specific details of the specifications and parameters or picture trouble pro contact customer service, we will answer the pro's questions, thank you for the pro's support of the net environmental protection, thanks!

Dongguan Jingchuang Environmental Protection Equipment Co., Ltd. was established in 2012 (the company has Dongguan Chengda Seawater Treatment Equipment Co., Ltd.), located in Dongguan City, Guangdong Province.
