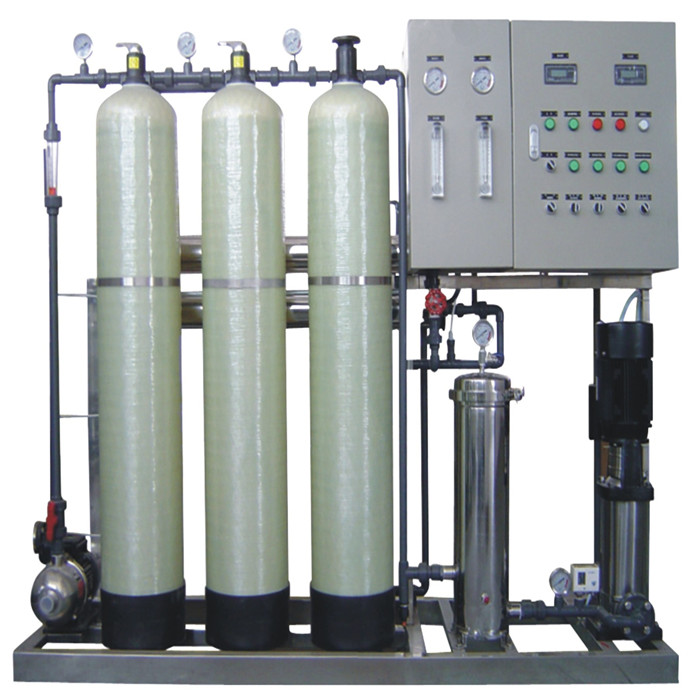

Three-Tank Water Treatment System, Producing 800L Of Water Per
Hour...
The three-tank water treatment system is a highly efficient water
treatment equipment with the following features and functions:
1. Product Introduction:
• The three-tank water treatment system consists of three standard
high-speed filtration units, which can effectively remove
particulate matter and reduce turbidity through internal water
distributors and water collectors, using different media.
• The system can be equipped with specific filter media, such as
activated carbon, anthracite, etc., to adsorb and remove
corresponding organic matter and ions
• The system is modularly set up, with a small footprint, less
piping, less investment, and has the characteristics of high
filtration rate and low pressure loss.
2. Technical parameters:
• Various structural forms, including single tank, two tanks in
parallel, three tanks in parallel, etc.
• The filter unit has a variety of specifications from 16 inches
(400mm) to 96 inches (2400mm), and can be installed in different
ways.
3. Performance characteristics:
• High filtration rate and low pressure loss solve the problems of
slow filtration rate and small flow rate of ordinary mechanical
media filters. • The backwash water source can be selected from the
system, water tower or external water source, and can be switched
automatically.
• Multiple models of units are available, and multiple units can be
combined, and the processing flow can be expanded arbitrarily.
4. Working principle:
• When the system is in the filtering state, pressurized water
flows into the water distribution system from the filter tank inlet
and reaches the filter layer evenly. When the water flows through
the filter layer, the suspended matter is intercepted by the
filter.
• As impurities continue to accumulate in the filter layer, the
pressure loss increases. When the pressure difference increases to
the set value, the system automatically switches to the backwash
state to flush and remove pollutants and discharge them from the
filter system.
5. Application field:
• The three-tank water treatment system is mainly used for the
filtration of circulating water, water supply and wastewater in the
industrial field.
6. Customer case:
• The system has been widely used in many fields. For specific
cases, please refer to the relevant product introduction and
application field. In summary, the three-tank water treatment
system plays an important role in the field of water treatment with
its high efficiency, modularization and automation.
........................................................................................................................................................................................................................................
........................................................................................................................................................................................................................................
Note: Due to product specificity need to buy the pro please contact
our customer service, customer service will be based on the pro's
water consumption and water quality problems to recommend the right
products to the pro, in order to avoid unnecessary future trouble
please do not blindly buy equipment, such as the need for specific
details of the specifications and parameters or picture trouble pro
contact customer service, we will answer the pro's questions, thank
you for the pro's support of the net environmental protection,
thanks!
