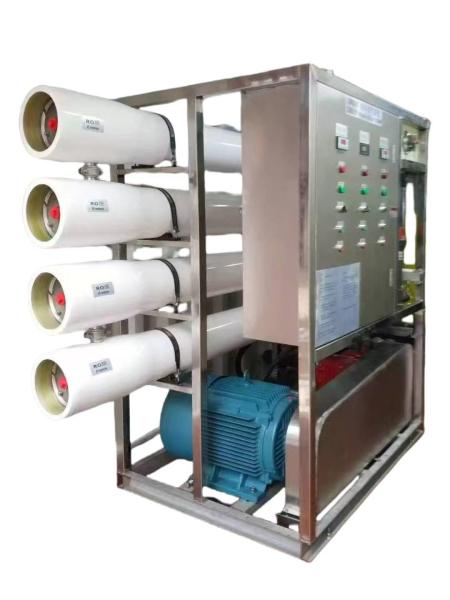

100t Desalination Water System, Producing 5 Tons Of Water Per Hour
The 100T desalination water system is a high-efficiency water
treatment equipment specially designed to convert seawater or
brackish water into fresh water that meets the standards for
drinking water.
The following is a detailed introduction to the system:
1. Product Overview: The system uses reverse osmosis technology,
and uses mechanical filtration, activated carbon filtration, and
softening exchange as pre-treatment to effectively remove suspended
matter, silt particles, organic colloids, organic matter, odor,
residual chlorine, calcium and magnesium and other impurities.
Subsequently, the programmable controller is used to control the
reverse osmosis device for pre-desalination, further removing
soluble salt substances, bacteria, heat sources, etc. in the raw
water to ensure that the quality of the finished water meets the
standards[^0^].
2. Water production process: The water source first passes through
the booster pump, manganese sand filter, activated carbon filter,
and security filter, and then enters the reverse osmosis membrane
element through a high-pressure pump, and finally flows into the
pure water tank for use at the water point[^1^].
3. Product features:
• High rate of imported accessories, high degree of operation
automation, including automatic shutdown when low pressure is full
of water, automatic shutdown when high pressure is full of water,
protection against water pressure fluctuation, automatic controller
to regularly flush the pre-filter material, IC microcomputer
controller to automatically flush the reverse osmosis membrane, and
automatic water quality monitoring.
• Small footprint, low energy consumption, no pollution, simple
process, high water quality, easy operation and maintenance. • High
removal rate, more than 97% of soluble salts, more than 98% of
organic matter, more than 98% of colloids, bacteria, and heat
sources[^2^].
4. Scope of application: Widely used in the preparation of pure
water and ultrapure water in electronics, industry, medicine, food
and other industries, process water in textile and chemical
industries, water for food and beverage industry, purification and
preparation of drinking pure water, beverages, beer, liquor, health
products, etc., as well as desalination of brackish water and
seawater and other fields[^3^].
5. Technical parameters: The 100T desalination water system has the
following technical parameters:
• Processing capacity: 100 tons/day (T/D)
• Water production rate: 5 tons/hour
• Power: 30,000 watts (W)
• Power requirements: 380-415 volts (V)
• Dimensions: 5000 mm long x 1100 mm wide x 2150 mm high This
system is designed and manufactured with high efficiency and low
cost in mind, and is suitable for various occasions that require a
large amount of fresh water supply, such as islands, ships,
offshore drilling platforms, and brackish water areas. Advanced
reverse osmosis technology and automated control systems ensure
high water quality standards and stable system operation.
........................................................................................................................................................................................................................................
........................................................................................................................................................................................................................................
